What Is Spiral Bevel Gear and Where Are They Used?
2023 / 03/ 15
A spiral bevel gear is an essential component in many machines, from cars to industrial equipment. Not only do they work to reduce energy loss and increase efficiency, but they also provide stability and strength.

A spiral bevel gear is an essential component in many machines, from cars to industrial equipment. Not only do they work to reduce energy loss and increase efficiency, but they also provide stability and strength. These gears are designed with a curved or angled surface that allows for smooth operation when transferring power from one shaft to another at an angle.
But what exactly is a spiral bevel gear, and how does it work?
In this article, we'll explore the basics of spiral bevel gears and discuss some common applications where they can be used.

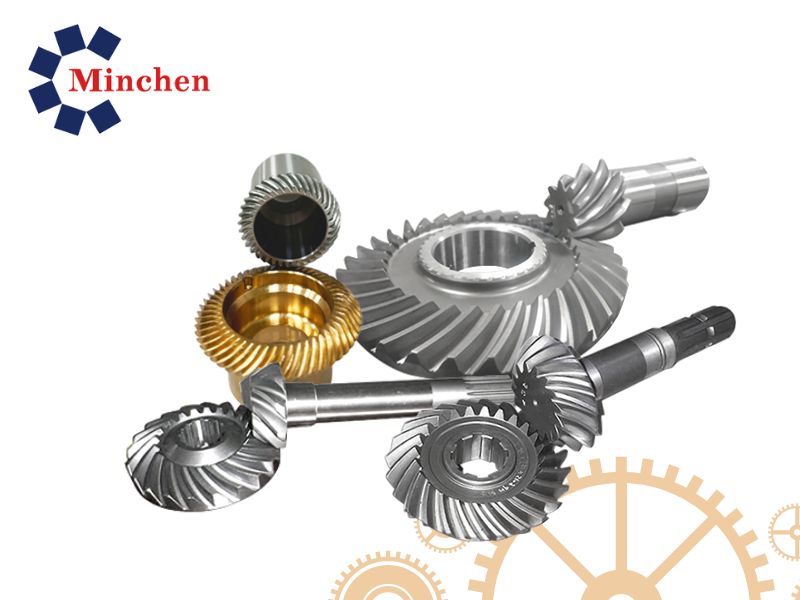

What Is Spiral Bevel Gear?

The spiral bevel gear is a bevel gear with intersecting axes, usually meeting at a 90-degree angle. These teeth are cut in an arc along their length as well as have an involute profile. There are no offsets in this type of gear, although it can also be seen as a hypoid gear.

How Spiral Bevel Gear Work?

Spiral bevel gears are designed with curved oblique teeth that smoothly and gradually contact each other, connecting in a manner similar to helical gears. As opposed to straight bevel gears, spiral bevels can operate smoother and quieter due to the presence of two or more engaging teeth. While these gears offer superior performance, they are also associated with high tooth pressure.
This type of gear is becoming increasingly popular in many applications due to its key benefits. It ensures even distribution of load across the teeth, can withstand higher load without fatigue, and produces different results depending on the direction of rotation and angle of the spiral teeth - whether it's positive or negative.


Components of Spiral Bevel Gear

Spiral bevel gears are an integral part of many machines and systems, providing smooth and dependable operation. A spiral bevel gear model is comprised of three main components:
●    The input and output shafts are responsible for transmitting torque.
●    The pinion-gear pair act as a lumped parameter element.
●    The motor and load machine are assimilated to torsional stiffness.
Together, these components form the basis of any spiral bevel gear system, and their careful selection, design, and installation can ensure the longevity and efficiency of a machine.

Features of Spiral Bevel Gear

Like other forms of bevel gears, spiral bevels offer a number of advantages. These include:

●    Reduced Vibration and Noise Levels

Spiral bevel gears are made with curved teeth that evenly distribute the load across the entire set, resulting in reduced levels of vibration and noise. This is especially useful for applications that require a silent operation, such as medical devices.

●    Variety of Configurations Available

From right-angle drives to parallel shafts and crossed shafts, spiral bevel gears can fit into a variety of configurations. Plus, they come in imperial or metric sizes, making it easy to integrate with existing systems without needing any modifications or special equipment.

●    Easy Installation & Maintenance

Installation and maintenance are straightforward - spiral bevel gears come pre-assembled with input and output shaft flanges for easy mounting, plus they require minimal lubrication due to the curved teeth reducing friction during operation.

Applications of Spiral Bevel Gears

●    Vehicle differentials

Spiral bevel gears are utilized in the most common vehicle differentials to transfer power from the engine to the wheels with a level of smoothness and silence that surpasses traditional straight bevel gears.

●    Gearboxes

These types of gearing systems can also be used in gearboxes as they effectively adjust and control speed and torque levels while producing low noise levels. Additionally, they deliver an exceptional level of efficiency.

●    Pumps

Be it oil, fuel, or water pumps, spiral bevels offer precise speeds for improved efficacy that is cost-effective.

●    Compressors

Spiral bevels can also be found in air conditioning units or refrigerators, providing efficient cooling with minimal noise production and vibration.

●    Electric Motors

Electric motors coupled with spiral bevels help transfer power while preserving high levels of efficiency at a fraction of the cost compared to other solutions.

●    Printing presses

they can help control speed as well as change the direction of rotation when needed, ensuring that printing is done accurately and efficiently.

●    Robotics and automation systems

Robotics and automation systems rely on precision-designed spiral bevels when dealing with exact movements that involve positioning - reducing wear on other components, such as bearings or shafts, is also made possible through their utilization.

●    Cone Crushers & Sand Mixers

Straight, spiral, or skew bevel options are available for cone crushers; the hard-cutting option increases strength while the ground teeth allow for smooth running with lower noise levels and vibration.

●    Aerospace

High-speed applications, including jets, make use of both straight and spiral bevel gear alternatives combined with special steel processing, which reaches up to 16,000 rpm rate capabilities.

●    Cooling Tower

Ground tooth machinery is employed in cooling towers; it allows a smoother running experience with minimal vibration plus noise production at a cost-effective price point.

●    Packaging & Food Processing

Specialized gearboxes suitable for pharmaceutical packaging machines, together with food processing sectors, can all benefit from highly accurate speeds produced by spiral bevels - these ensure reliable performance across multiple industries.


What is a spiral gear called?
Known as crossed helical gears, these apparatuses are situated on non-intersecting shafts that form an angle with one another.

What is the difference between bevel gear and spiral bevel gear?
The cone shape of bevel gears produces thrust force that is parallel to the axis of rotation. What makes spiral bevel gears even more advantageous is their capacity to switch up the direction and hand of thrust, increasing the pressure placed on bearings.


How to Select the Right Type of Spiral Bevel Gear for Your Needs?

1. Determine the application requirements: The first step is to determine the specific requirements of the application. Consider factors such as the speed and torque requirements, the environment in which the gear will be used, and any other specific needs or constraints.

2. Choose the right tooth configuration: Spiral bevel gears come in different tooth configurations, including hypoid, zerol, and spiral. Each configuration has its own strengths and weaknesses, so choose the one that best suits your application.

3. Determine the gear ratio: The gear ratio determines the speed and torque of the gear. The gear ratio is calculated by dividing the number of teeth on the larger gear by the number of teeth on the smaller gear. Choose a gear ratio that meets the requirements of your application.

4. Select the right material: Spiral bevel gears can be made from a variety of materials, including steel, bronze, and plastic. Choose the material that is best suited for the specific requirements of your application, taking into consideration factors such as strength, durability, and cost.

5. Consider customization options: Depending on your specific needs, you may require customizations to your spiral bevel gear. This could include modifications to the tooth geometry, material selection, or other features. Work with a manufacturer who can provide custom solutions tailored to .

Final Thoughts

Spiral bevel gears come with a number of advantages, from their low cost and minimal maintenance requirements to their high efficiency and noise absorbency. With the right set-up, they can be used in a myriad of commercial applications across multiple industries.
In addition, modern advancements like Minchen designs have allowed these expensive components to become even more versatile and cost-efficient. When it comes to achieving reliable performance, precision speed control, and reduced vibration and noise levels, spiral bevel gears are an excellent choice.

Minchen provides custom designs for our customers. Contact us for more details!
